Lightning 3 shaders

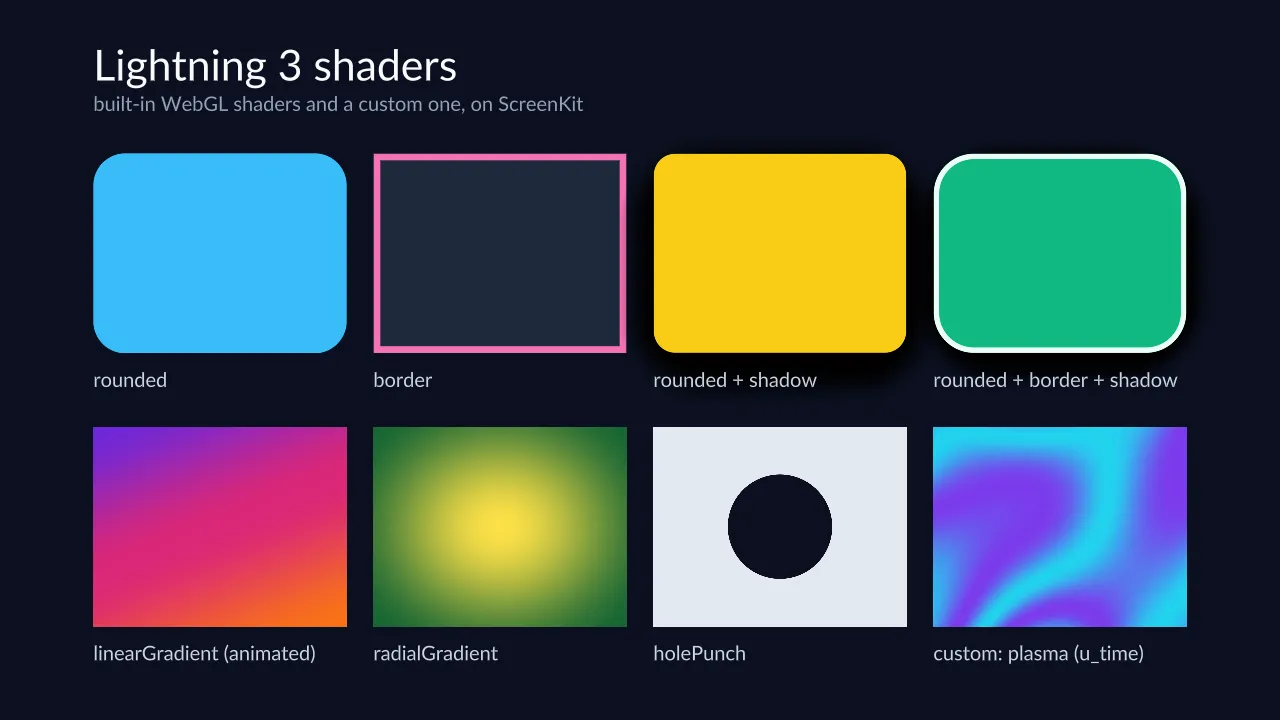

What you are looking at: eight different shader programs on screen at once, each labelled with what it is. This puts far more on the GPU than a hello world, and each tile fails visibly and distinctly if its shader is wrong — a missing holePunch is an unbroken rectangle, a broken radialGradient is a flat fill.

The bottom-right tile is a custom plasma shader driven by u_time, so it redraws every frame. If the runtime ever stopped feeding uniforms per frame, that tile would freeze while the other seven kept looking correct.

What it proves

Exercised	How
Eight distinct shader programs	rounded, border, shadow and their combinations
Uniform arrays	the gradient stops and colours
Reactive shader props	values changing per frame from JS
A timed shader	u_time on the custom plasma tile
Alpha and shadow compositing	the drop shadows on the top row

Why this one matters for a port

A hello world proves the GL entry points exist. This proves the object model around them holds up: uniform arrays, per-frame uniform updates, and several programs alive at once, each with its own state. It is the example that catches a GL layer that works for one program and falls apart with eight.

Run it

npm run build:screenkit -w screenkit-example-lightning3-shaders
runtime/build/macos/screenkit-host --window examples/lightning3-shaders/app.skpkg
